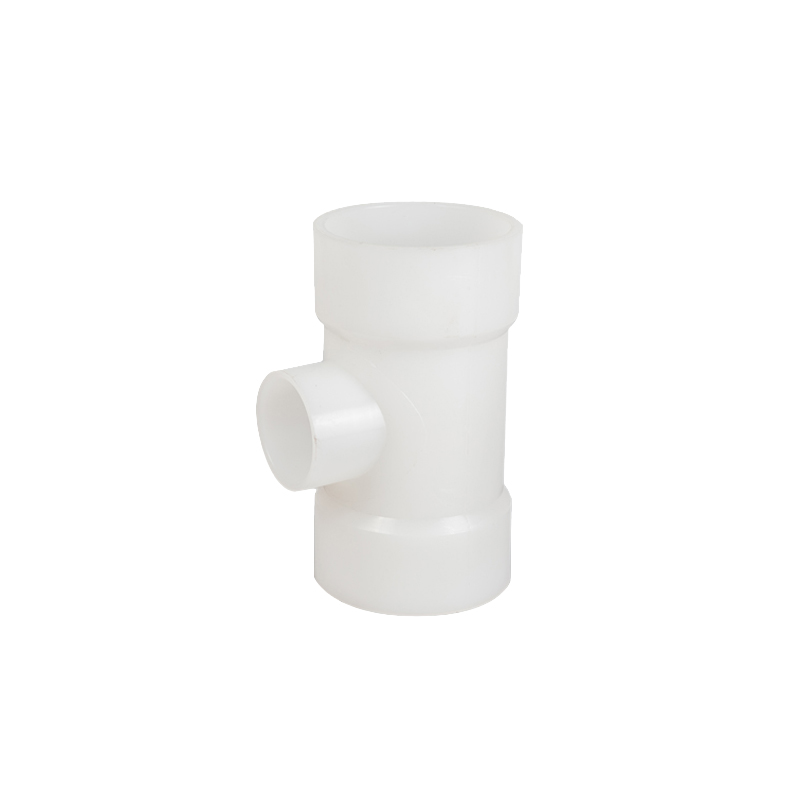

CPVC、UPVC、FRPP、PVDF、PPH 三通
數據正在更新。 請聯係我們的銷售以獲取更多詳細信息!

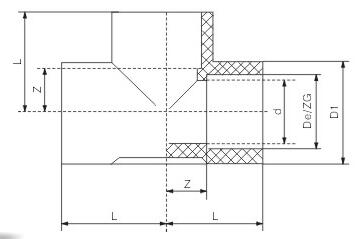

DN(mm) 公稱通徑 |
D1 |
De |
D |
Z6 |
L |
Z |
15 |
28 |
20 |
18 |
1/2" |
27 |
11 |
20 |
33 |
25 |
23 |
3/4" |
32.5 |
13.5 |
25 |
40 |
32 |
29 |
1" |
39 |
17 |
32 |
50 |
40 |
36 |
l l/4" |
47 |
21 |
40 |
62 |
50 |
45 |
11/2" |
57 |
26 |
50 |
75 |
63 |
57 |
2" |
70.5 |
32.5 |
65 |
90 |
75 |
67 |
82.5 |
38.5 |
|
80 |
105 |
90 |
82 |
97 |
46 |
|
100 |
125 |
110 |
100 |
117 |
56 |
|
125 |
160 |
140 |
126 |
147 |
71 |
|
150 |
180 |
160 |
145 |
167 |
81 |
|
200 |
245 |
225 |
203 |
233 |
114 |
|
250 |
306 |
280 |
255 |
180 |
||
300 |
348 |
315 |
305 |
222 |
PVDF承插焊/熱熔焊管件
90°彎頭 |
束接/直通 |
三通 |
45°彎頭 |
法蘭 |
管帽 |
盲板 |
四通 |
活接 |
外絲接頭 |
|
DN15 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|
DN20 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|
DN25 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|
DN32 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|
DN40 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|
DN50 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
DN65 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|
DN80 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|
DN100 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
|
DN125 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||||
DN150 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
||||
DN200 |
◎ |
◎ |
◎ |
◎ |
◎ |
◎ |
DN100以下可選承插焊或熱熔焊管件,其中帶的品類僅有熱熔管件
DN125以上僅有承插焊管件
